Spigot / Collar

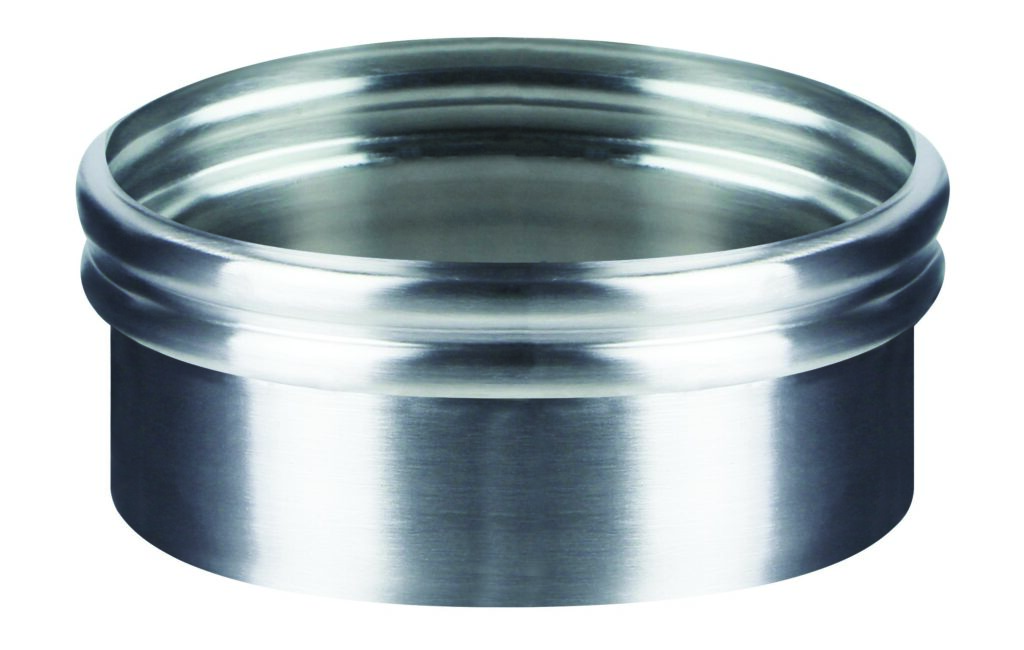

Spigot

BFM® fitting’s spigots are uniquely shaped to enable the connectors to snap-fit inside. They are available in Stainless Steel T304L and T316L, as well as C22 Hastelloy and are supplied in a range of exact diameters.

Product Description

Title Line

Available in Stainless Steel T304L and T316L, as well as C22 Hastelloy. They are available in a range of exact sizes, eliminating the imprecise nature of hose-clamp sleeve type connection widths and ensuring a perfect fit with the BFM® connector.

Spigot Spec Sheet

Application

  • The design is slightly tapered, so the OD at the top of the tail is 5mm / 13/64” greater than the base.
  • 89mm (3 1/2″) in total length – made up of a head of 37mm (1 29/64″) and a ‘tail’ that is 52mm (2”) long.
  • The tail can be easily cut down or cut on an angle to suit your existing tubing or pipework.

For applications where there is a possibility for static build-up, e.g., wood dust, flour, milk powder etc., we recommend using a static dissipative wire (strip), connecting the two BFM® spigots together.

Slightly tapered design to account for tube/pipe diameter variations

Available in three materials

Can be used in CIP wash cycles

3A, USDA, EC and ATEX compliant
